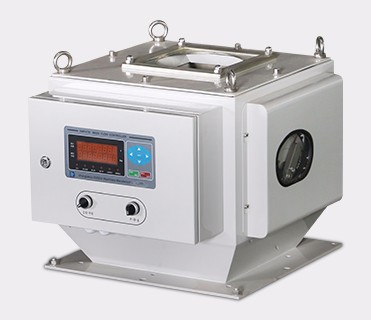

Wheat Flow Balancer Machine

Flow balancer provides continuous flow control or continuous batching for free flowing bulk solids. It is suitable for bulk materials with uniform particle size and good flowability. Typical materials are malt, rice and wheat. It can be used as mixture of grain in flour mills and rice mills.

Online batching system

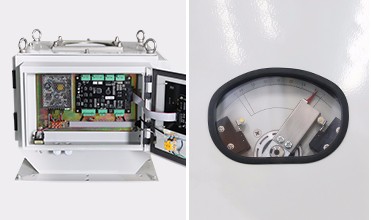

Flow balancer: Adopting the pressure sensor and single chip technology, it has similar working principle with Buhler, the difference is the actuator of Buhler adopts cylinder control gate, but we use the energy saving gear motor (≤40W) to control the slide gate, which not only greatly improved the wheat proportion precision and saved a lot of energy, but also not affected by temperature in winter.

Flow balancer is an independent closed loop control system, and a series of flow balancer forms an on-line wheat proportion system

The wheat proportion system can be automatically controlled and adjusted according to the total amount and proportion determined by the clients, and the parameters of the system can be modified at random. The system can also be connected with the upper PC machine of the clients, therefore, the computer can control and print the report forms.

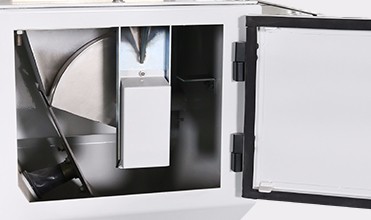

There is no mechanical blind space in the flow balancer; and the material flows by gravity, which ensures the integrity of weighing materials.

Features
1) Control and balance materials flow.
2) Ensure the integrity of materials.
3) Flow parameters can be set according to requirements.

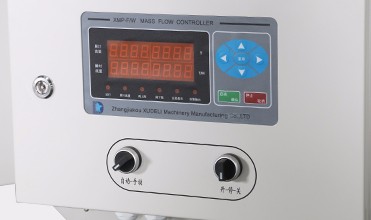

4) Accumulative flow, instantaneous flow and set flow can be displayed.

5) High precision and strong adaptability.

6) Automatic alarm.

7) Automatic data protection when power fails.

8) Standard RS-485 serial communication interface



Technical Parameter List:

Type	Diameter(mm)	Capacity(t/h)	Precision(%)	Air Consumption(L/h)	Shape Size LxWxH(mm)
HMF-22	Ø120	1~12	±1	150	630x488x563





The measuring accuracy can reach 0.5%-3%, sensitive reaction, and long time working stability





Can quickly close the material gate in case of shutdown or power failure, and prevent blocking the downstream equipment .





With the electronic control system, the remote real-time control can be easily realized, and the interlock control with the downstream equipment can be realized. The system has the function of alarm when the materials are less or the machine has error.
